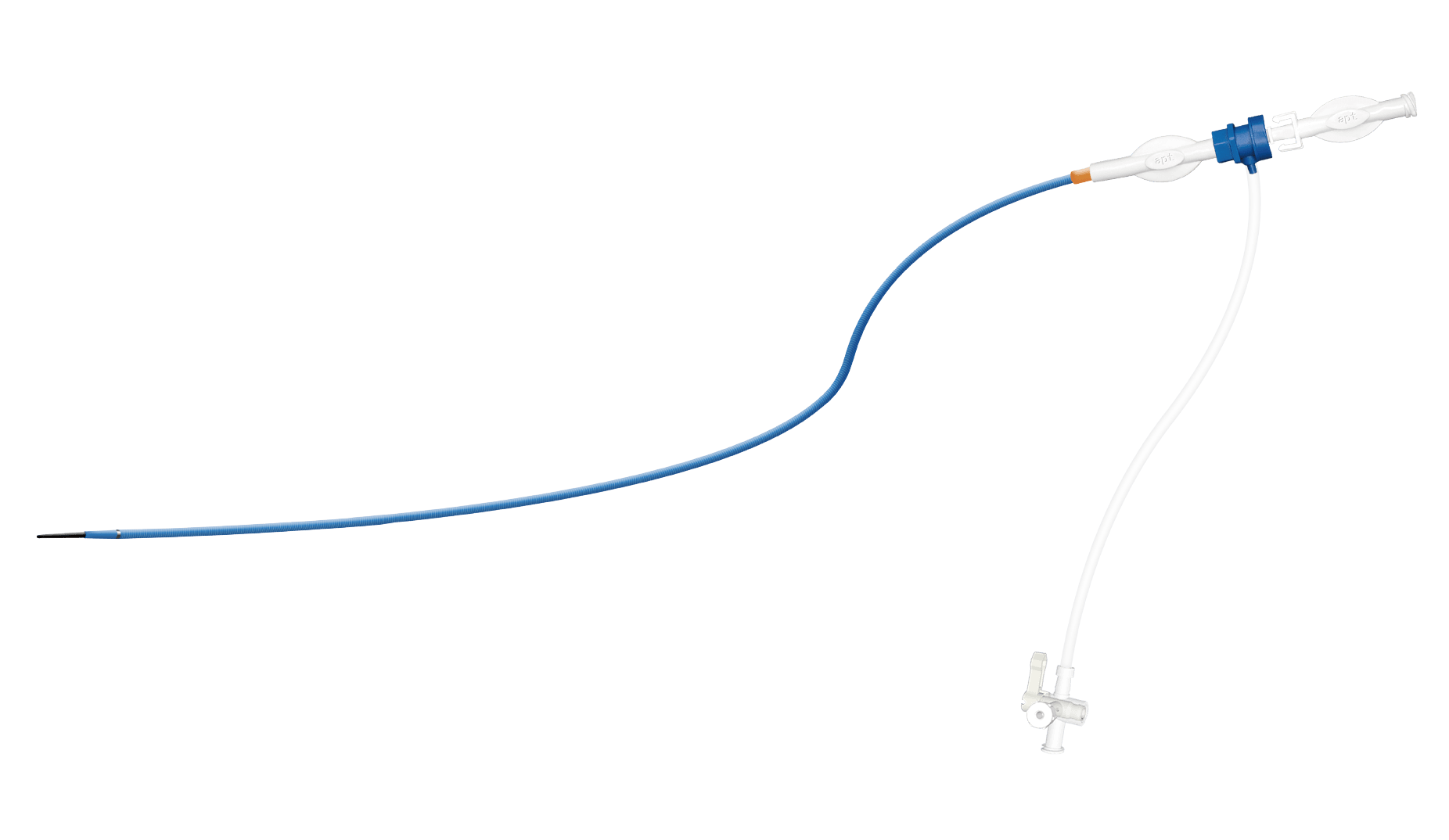

Sailwire™ guiding sheath with stainless steel coil and braided mesh structure gives you flexibility, support and fracture resistance at the same time, multiple configurations are available to meet different clinical needs, which greatly simplifies PAD interventions.
*CE in progress
- Stainless steel coil winding and braided mesh reinforced construction offers reliable support, kink resistance and flexibility
- Highly visible sheath and radiopaque band for easy and precise positioning
- Patented coating on the distal ensures long-lasting lubricity and smooth advancing
- Removable hemostatic valve to deliver devices easily during procedure, minimizing device exchanges
- Smooth transitions between guidewire, dilator, and sheath reduce friction and vessel damage

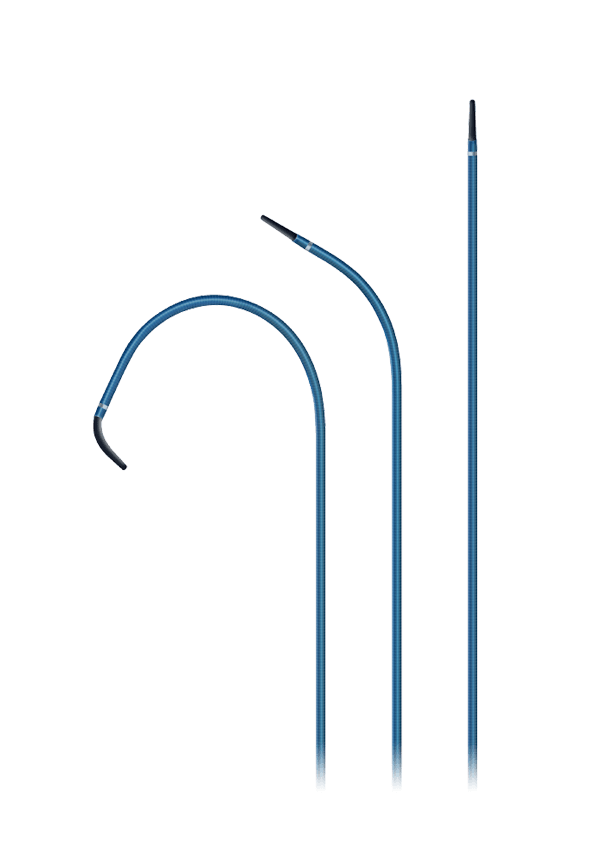

- Size: 4-12 Fr; Length: 40-110 cm; Curves: 10 options
* The product is not available in all countries, please contact us for more details.
| Curve | Straight | ||||||||||||||||||
| Length (cm) | 40 | 45 | 55 | 65 | 70 | 80 | 90 | 110 | |||||||||||
| 4F | 830404002 | 830404502 | 830405502 | 830406502 | 830407002 | 830408002 | 830409002 | 830411002 | |||||||||||
| 5F | 830504002 | 830504502 | 830505502 | 830506502 | 830507002 | 830508002 | 830509002 | 830511002 | |||||||||||
| 6F | 830604002 | 830604502 | 830605502 | 830606502 | 830607002 | 830608002 | 830609002 | 830611002 | |||||||||||
| 7F | 830704002 | 830704502 | 830705502 | 830706502 | 830707002 | 830708002 | 830709002 | 830711002 | |||||||||||
| 8F | 830804002 | 830804502 | 830805502 | 830806502 | 830807002 | 830808002 | 830809002 | 830811002 | |||||||||||
| 9F | 830904002 | 830904502 | 830905502 | 830906502 | 830907002 | 830908002 | 830909002 | 830911002 | |||||||||||
| 10F | 831004002 | 831004502 | 831005502 | 831006502 | 831007002 | 831008002 | 831009002 | 831011002 | |||||||||||
| 12F | 831204002 | 831204502 | 831205502 | 831206502 | 831207002 | 831208002 | 831209002 | 831211002 | |||||||||||
| Curve | Hockey Stick | RDC | LIMA | Multi-Purpose | SHTL | ||||||||||||||
| Length (cm) | 45 | 45 | 45 | 45 | 90 | 110 | 80 | 90 | 110 | ||||||||||
| 4F | - | - | - | - | - | 830411022 | - | 830409092 | 830411092 | ||||||||||
| 5F | 830504512 | 830504532 | 830504542 | 830504522 | 830509022 | 830511022 | - | 830509092 | 830511092 | ||||||||||
| 6F | 830604512 | 830604532 | 830604542 | 830604522 | 830609022 | 830611022 | 830608092 | 830609092 | - | ||||||||||
| 7F | 830704512 | 830704532 | 830704542 | 830704522 | 830709022 | - | 830708092 | 830709092 | - | ||||||||||
| 8F | - | - | - | - | - | - | - | 830809092 | - | ||||||||||
*Without guidewire
| Curve | BALKIN | ANL1 | ANL2 | ANL3 | |||||||||||||||
| Length (cm) | 40 | 50 | 60 | 70 | 45 | 55 | 90 | 45 | 55 | 45 | |||||||||
| 5F | 830504052 | 830505052 | 830506052 | 830507052 | 830504562 | - | 830509062 | 830504572 | - | - | |||||||||
| 6F | 830604052 | 830605052 | 830606052 | 830607052 | 830604562 | 830605562 | 830609062 | 830604572 | 830605572 | 830604582 | |||||||||
| 7F | 830704052 | 830705052 | 830706052 | 830707052 | 830704562 | 830705562 | - | 830704572 | 830705572 | - | |||||||||
| 8F | 830804052 | 830805052 | 830806052 | 830807052 | 830804562 | - | - | - | - | - | |||||||||
| 9F | - | - | - | - | 830904562 | - | - | - | - | - | |||||||||
| 10F | - | - | - | - | 831004562 | - | - | - | - | - | |||||||||
| 12F | - | - | - | - | 831204562 | - | - | - | - | - | |||||||||
*Product reference numbers may vary by region. Please contact APT Medical team for further details.
